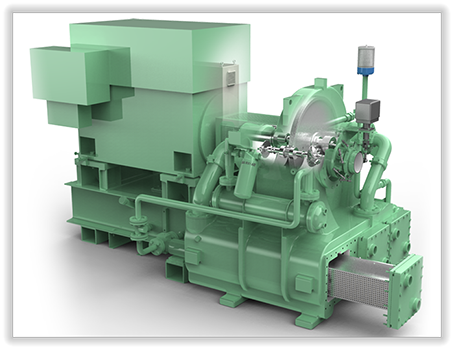

TRE SERIES CENTRIFUGAL COMPRESSORS

Technical specification:

Flow rate:2300-12000m3/h

Pressure:2-16barg

Shaft power:355-1250kw

1.Titanium Impeller with high strength and efficiency
2.100% oil-free
3.Energy saving inlet guide vanes increasing the turndown capacity of the compressor
4.Constant pressure, load/unload control
5.Integrated design of gear box & inner cooler to ensure total reliability & durability
6.Horizontal split designed gearbox, maintenance friendly

Characters

  1. 100% oil-free
  2. Vibration-free
  3. Low Noise Level
  4. Compact Size, the installation can be finished in a very short time.
  5. Easy access facilities maintenance
    Easy inspection machine parts

Simply removing the gear cover can check all moving parts. The main component parts like bull gear, pinion gear, shaft seal, bearings, etc. can be inspected easily and in short time. There is no need for removal other parts like air and water piping etc.
